The tangential flow filtration system is principally intended for the automated operations including concentration, liquid exchange, desalination, and dealcoholization of biological products such as antibodies, vaccines, blood products, gene therapy drugs, etc. The TFF filtration system, as a key component of the modern automated TFF system, mainly consists of power unit, membrane filter holder, detection unit, and automatic control unit. This article focuses on the membrane filter holders. FiltraLinX® tangential flow filtration holder is used to hold a certain area of filtration membrane filter, allowing both 0.1-0.5 ㎡ and 0.5-2.5 ㎡ filtration area requirements of lab scale tests. Peristaltic pumps with various specifications are available to meet customer needs. They are ideally suited for universal TFF filtration systems required for routine laboratory use and small-scale preparation.
For inquiries about tangential flow filtration system prices, or to learn more about how the tangential flow filtration equipment can enhance your laboratory or industrial process, contact us today. By choosing the tangential flow filtration system, you're not just investing in a TFF system — you're gaining access to the most reliable, efficient, and versatile tangential flow system on the market.
Product Model：FiltraLinx® Manufacturer nature：Manufacturer Update time：2025-09-30 Visits：83 Product catalog
Related articles
Detailed Introduction
*Compatible with mainstream filtration membrane filters in the market, including ceramic tangential flow filtration, hollow fiber tangential flow filtration, and single-use tangential flow filtration.
*High-performance tangential flow filtration design: Built with superior technology, providing efficient filtration while saving energy. It delivers safety, reliability, and is easy to maintain.
*Suitable for laboratory R&D scale, pilot scale, etc.
*Applicable for manufacturing of vaccines, proteins, plasmids, plasmas, colloidal suspensions, cells, etc.
*The parts in direct contact with the feed liquid are made of sanitary-grade materials, such as 316L stainless steel, PTFE, EPDM, TPE, etc. Material certifications are available on request.
*The stainless steel material is resistant to disinfectants such as acid, alkali, organic solvents, etc., meeting CIP and cleaning validation requirements.
*Smooth surface design, with no dead corners, ensuring easy cleaning and maintenance.
*Clear markings on pipe connections with flow direction indicators for ease of use.
*The tangential flow filtration TFF system is designed to withstand a pipeline pressure resistance of 5 bar, ensuring durability during filtration processes.

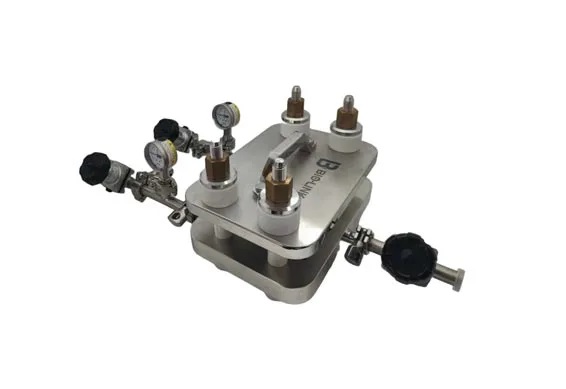

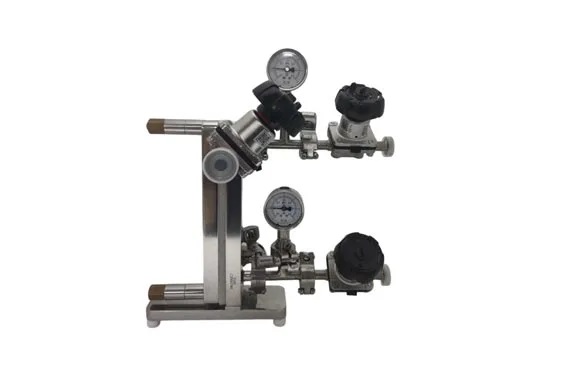

*Holder sets come equipped with matching pressure gauges and hand valves, allowing for immediate use once the pressure pipes and pumps are assembled.
*Adopt the clamping method for connection, easy for mounting and setting.
*Optional pressure gauge calibration services are available for added precision.
These features make the FiltraLinX® tangential flow filtration holder a perfect fit for both single-pass tangential flow filtration and continuous filtration TFF systems, particularly in industrial tangential flow filtration applications.
When investing in the FiltraLinX® TFF system, customers receive comprehensive documentation, ensuring the highest level of quality control:
*Quality certificates verifying system performance.
*Product inspection reports to guarantee compliance with industry standards.
*List of system components and spare parts for easy maintenance and replacement.
*GA drawings for installation and system configuration.
*Certificates of roughness testing, conformity certificates, and a user manual for the materials used in pipe fittings and other components.
*Optional pressure gauge calibration certificates for added validation.
This detailed documentation ensures that the FiltraLinX® automated TFF system is not only high-performing but also compliant with industry regulations, making it a trusted solution for critical applications like tangential flow filtration for virus purification.

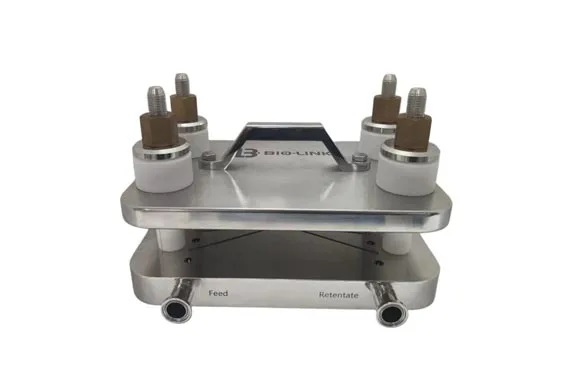

| Cat. No. | TH-CMN-001 | TH-CMV-001 | TH-CMN-005 | TH-CMV-005 |
| Type |
Filtration membrane filter holder |
Filtration membrane filter holder set |
Filtration membrane filter holder |
Filtration membrane filter holder set |
| Adapting membrane filters |
Merck membrane filters of 0.1 m2 and 0.11 m2 , PALL membrane filter of 0.1 m2, and other brands of similar membrane filters |
Merck membrane filters of 0.5 m2 and 0.57 m2, PALL membrane filter of 0.5 m2, and other brands of similar membrane filters |
||
| Number of membrane filters | 1~5 pcs | 1~5 pcs | ||
| Size (mm) | 260*100*180 | 345*245*386 | 260*280*210 | 608*280*210 |
| Connection | 1/2" TC25 | 1/2" TC25 | 3/4" TC25 | 3/4" TC25 |
| Number of valves | N/A | 3 | N/A | 3 |
| Number of pressure gauges | N/A | 2 | N/A | 2 |
| Maximum working pressure | 5 bar | 5 bar | 5 bar | 5 bar |
|
Material of liquid-contacting part |
316 L | |||
|
Roughness of liquid-contacting surface |
Ra ≤ 0.4 | |||
| Accessory 1 | 1 set of matching torque wrench | |||
| Order No. | Product description | Valve | Pressure gauge |
| TH-CMN-001 | Filtration membrane filter holder | N/A | N/A |
| TH-CMV-001 | Filtration membrane filter holder set | 3 pcs | 2 pcs |
| TH-CMN-005 | Filtration membrane filter holder | N/A | N/A |
| TH-CMV-005 | Filtration membrane filter holder set | 3 pcs | 2 pcs |
