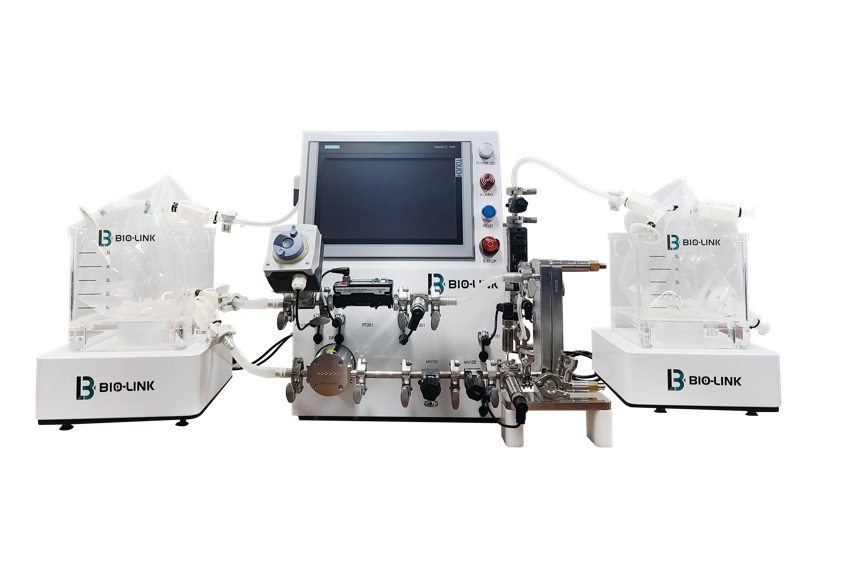

Product Model：FiltraLinX® Pilot Manufacturer nature：Manufacturer Update time：2025-09-18 Visits：72 Product catalog
Related articles
Detailed Introduction
Supports diverse needs for pilot trials and small-batch production;
Compatible with hollow fiber filters and cassettes ranging from 0.5 to 2.5 m2;
Modular and customizable configuration with single-use components to avoid cross-contamination;
Highly automated system with data recording, audit trial, permission management, and other functions;
Structural design meets hygienic standards, including GMP, cGMP, and ASME BPE.
Applicable products: Antibodies, vaccines, gene-based medicines, blood products, antibiotics, biochemical products, traditional Chinese medicines, etc.;
Applicable processes: Harvesting, clarification, separation and purification, concentration, dialysis, buffer exchange, microfiltration experiments.
| Cat.No | TS-CMV-S20 |
| Tangential flow rate | 15 L/min |
| Membrane area compatibility | 0.5-2.5 m2 |
| Min.circulation volume | 300ml |
| Control leve | Semi-automatic control |
| Operating pressure | Maximum 5 bar |
| Operating temperature | 4-60℃ |
| Roughness | Liquid-contact surface Ra ≤ 0.4 μm; Outer surface Ra ≤ 0.8 μm |
| Pipeline and fittings | SS 316L |
| Sanitary connection | TC chuck |
* Customization available upon request. For details, please consult the local sales or call the hotline 4000589000.
| Product description | Order. No. | Holder | Control system |
|
Pilot TFF System |
TS-CMV-S20 | √ | √ |
