Detailed Introduction
*The ergonomic design is easy to use
*The mixing motor supports free lifting to meet different liquid preparation needs (mixing volume range: 50–500 L)
*The impeller can rotate freely, and the inclined insert mixing contributes to irregular circular movement to im- prove the mixing efficiency

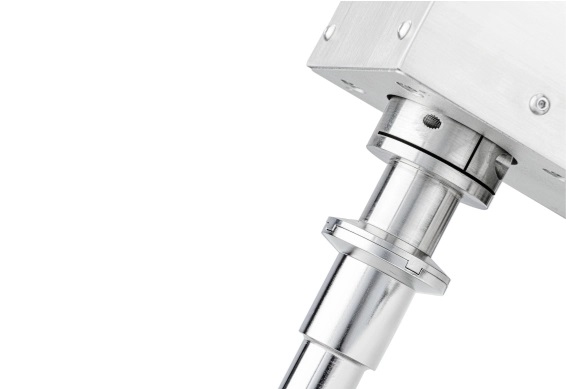

*The impellers made of SS316 can be mounted quickly through the clamp for efficient operation
*Stainless steel impellers with an open bag contribute to low-cost and high-quality liquid mixing
*The open design facilitates the rapid feeding of a large volume of materials
*Flexible choice of film options and higher cost performance
*Flexibly customizable sizes, tubing, and connector
*Complete validation documents
Technical Parameters
|
|
MX50 |
MX100 |
MX200 |
MX300 |
MX500 |
|

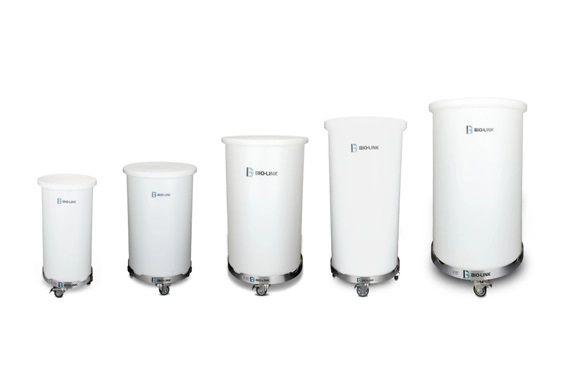

Bin |
|
||||
|
Material |
LLDPE |
LLDPE | LLDPE | LLDPE | LLDPE |
|
Shape |
Circular |
Circular | Circular | Circular | Circular |
|
Dimension |
36*71 cm |
48*76 cm | 56*91 cm | 61*122 cm | 81*124 cm |
|
Weight |
3.5 kg |
5.0 kg | 10.0 kg | 20.0 kg | 25.0 kg |
|
Transfer tray |
Made of SS304L, large polyurethane casters for floor protection |
||||
|
Controller |
|
||||
|
Mixer |
Top-driven mixing, 0–350 rpm; the maximum rotation speed needs to be determined according to the actual volume and viscosity of the feed liquid in the process |
||||
|

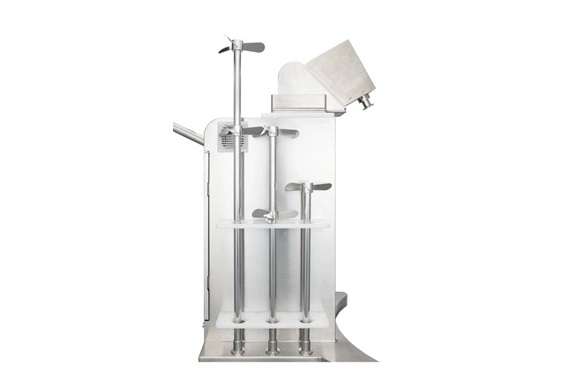

Impeller |
Push-type impeller, SS316 |
||||
|
Mixing mode |
Angle swivel, free lifting |
||||
|
Function |
Speed display and regulation, weight display, PID logic control, etc |
||||
|
Voltage |
220 V, 50 Hz |
||||
|
IP grade |
IP 55 |
||||
Ordering Information
|
Product name |
Cat. No. |
|
Control System |
CB-UMX-001 |
|
Mixing unit (shaft and impeller) |
IPM-UMX512（suitable for 50 L, 100 L, 200 L) |
|
IPM-UMX035（suitable for 300 L, 500 L） |
|
|
Circular plastic bin (no hole at the bottom) |
DRUM050L002 |
|
DRUM100L002 |
|
|
DRUM200L002 |
|
|
DRUM300L002 |
|
|
DRUM500L002 |
|
|
Circular plastic bin (with hole at the bottom) |
DRUM050L003 |
|
DRUM100L003 |
|
|
DRUM200L003 |
|
|
DRUM300L003 |
|
|
DRUM500L003 |
|
|
Transfer base |
DCART050L001 |
|
DCART100L001 |
|
|
DCART200L001 |
|
|
DCART300L001 |
|
|
DCART500L001 |
BioHub® Single-Use Open Bags are made of multi-layer co-extrusion films (PP infusion film and FL194A). The sterile storage bags are guaranteed very low gas permeability, excellent chemical compatibility and biocompat- ibility. This ensures their safety in the preparation and storage of feed liquids in various biopharmaceutical pro- cesses.
Consumables Ordering Information
Single-use open bag
|
Cat. No. |
Matching type |
Line 1 |
Film |
|
BBLR-0050-S005 |
BioHub® plastic bin 50 L |
No outlet tubing |
PP infusion film |
|
BBLR-0050-S003 |
No outlet tubing |
FL194A |
|
|
BBLR-0050-S004 |
50 cm ID3/8"*OD5/8" platinum cured silicone tubing + male MPC |
FL194A |
|
|
BBLR-0100-S005 |
BioHub® plastic bin 100 L |
No outlet tubing |
PP infusion film |
|
BBLR-0100-S003 |
No outlet tubing |
FL194A |
|
|
BBLR-0100-S004 |
50 cm ID3/8"*OD5/8" platinum cured silicone tubing + male MPC |
FL194A |
|
|
BBLR-0200-S005 |
BioHub® plastic bin 200 L |
No outlet tubing |
PP infusion film |
|
BBLR-0200-S003 |
No outlet tubing |
FL194A |
|
|
BBLR-0200-S004 |
50 cm ID3/8"*OD5/8" platinum cured silicone tubing + male MPC |
FL194A |
|
|
BBLR-0300-S005 |
BioHub® plastic bin 300 L |
No outlet tubing |
PP infusion film |
|
BBLR-0300-S003 |
No outlet tubing |
FL194A |
|
|
BBLR-0300-S004 |
50 cm ID1/2"*OD3/4" platinum cured silicone tubing + male MPX |
FL194A |
|
|
BBLR-0500-S005 |
BioHub® plastic bin 500 L |
No outlet tubing |
PP infusion film |
|
BBLR-0500-S003 |
No outlet tubing |
FL194A |
|
|
BBLR-0500-S004 |
50 cm ID1/2"*OD3/4" platinum cured silicone tubing + male MPX |
FL194A |
|
Cat. No. |
Matching type |
Line 1 |
Film |
|
BTLR-0019-S005 |
N series circular bin 19 L |
No outlet tubing |
PP infusion film |
|
BTLR-0019-S003 |
No outlet tubing |
FL194A |
|
|
BTLR-0019-S004 |
50 cm ID1/4"*OD7/16" platinum cured silicone tubing + male MPC |
FL194A |
|
|
BTLR-0028-S005 |
N series circular bin 28 L |
No outlet tubing |
PP infusion film |
|
BTLR-0028-S003 |
No outlet tubing |
FL194A |
|
|
BTLR-0028-S004 |
50 cm ID1/4"*OD7/16" platinum cured silicone tubing + male MPC |
FL194A |
|
|
BTLR-0038-S005 |
N series circular bin 38 L |
No outlet tubing |
PP infusion film |
|
BTLR-0038-S003 |
No outlet tubing |
FL194A |
|
|
BTLR-0038-S004 |
50 cm ID1/4"*OD7/16" platinum cured silicone tubing + male MPC |
FL194A |
|
|
BTLR-0057-S005 |
N series circular bin 57 L |
No outlet tubing |
PP infusion film |
|
BTLR-0057-S003 |
No outlet tubing |
FL194A |
|
|
BTLR-0057-S004 |
50 cm ID3/8"*OD5/8" platinum cured silicone tubing + male MPC |
FL194A |
|
|
BTLR-0113-S005 |
N series circular bin 113 L |
No outlet tubing |
PP infusion film |
|
BTLR-0113-S003 |
No outlet tubing |
FL194A |
|
|
BTLR-0113-S004 |
50 cm ID3/8"*OD5/8" platinum cured silicone tubing + male MPC |
FL194A |
|
Cat. No. |
Matching type |
Line 1 |
Film |
|
BTLR-0208-S005 |
N series circular bin 208 L |
No outlet tubing |
PP infusion film |
|
BTLR-0208-S003 |
No outlet tubing |
FL194A |
|
|
BTLR-0208-S004 |
50 cm ID3/8"*OD5/8" platinum cured silicone tubing + male MPC |
FL194A |
|
|
BTLR-0303-S005 |
N series circular bin 303 L |
No outlet tubing |
PP infusion film |
|
BTLR-0303-S003 |
No outlet tubing |
FL194A |
|
|
BTLR-0303-S004 |
50 cm ID1/2"*OD3/4" platinum cured silicone tubing + male MPX |
FL194A |
|
|
BTLR-0378-S005 |
N series circular bin 378 L |
No outlet tubing |
PP infusion film |
|
BTLR-0378-S003 |
No outlet tubing |
FL194A |
|
|
BTLR-0378-S004 |
50 cm ID1/2"*OD3/4" platinum cured silicone tubing + male MPX |
FL194A |
|
|
BTLR-0568-S005 |
N series circular bin 568 L |
No outlet tubing |
PP infusion film |
|
BTLR-0568-S003 |
No outlet tubing |
FL194A |
|
|
BTLR-0568-S004 |
50 cm ID1/2"*OD3/4" platinum cured silicone tubing + male MPX |
FL194A |
|
|
BTLR-0050-S005 |
T series circular bin 50 L |
No outlet tubing |
PP infusion film |
|
BTLR-0050-S003 |
No outlet tubing |
FL194A |
|
|
BTLR-0050-S004 |
50 cm ID3/8"*OD5/8" platinum cured silicone tubing + male MPC |
FL194A |
|
|
BTLR-0100-S005 |
T series circular bin 100 L |
No outlet tubing |
PP infusion film |
|
BTLR-0100-S003 |
No outlet tubing |
FL194A |
|
|
BTLR-0100-S004 |
50 cm ID3/8"*OD5/8" platinum cured silicone tubing + male MPC |
FL194A |
|
|
BTLR-0200-S005 |
T series circular bin 200 L |
No outlet tubing |
PP infusion film |
|
BTLR-0200-S003 |
No outlet tubing |
FL194A |
|
|
BTLR-0200-S004 |
50 cm ID3/8"*OD5/8" platinum cured silicone tubing + male MPC |
FL194A |
