Detailed Introduction

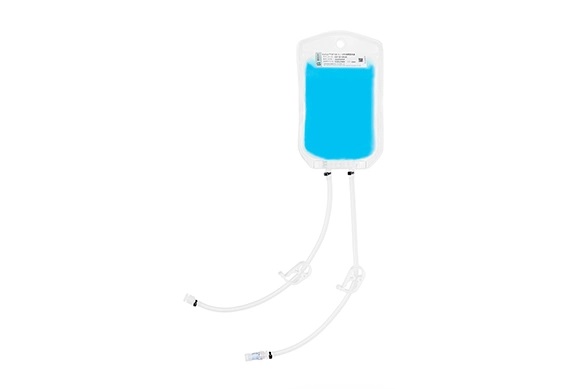

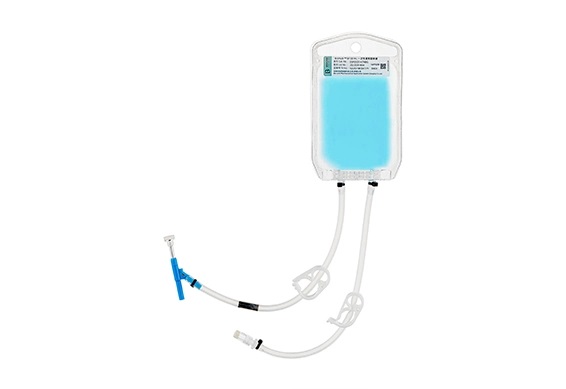

Product sampling is necessary and critical for cell culture and other operations in biopharmaceutical processes. Samples collected through BioHub® Single-use Sampling Bag can be used to determine critical purity attributes, such as sterility, endotoxin levels, bioburden, and important cell culture parameters including metabolites, nutrient levels, pH, and osmolarity. BioHub® Single-use Sampling Bag provides a pre-assembled sampling solution.
It is specially designed for sampling operations at various stages of biopharmaceutical processes such as in-process monitoring of buffer storage, medium preparation, product collection and analysis. To mitigate the risk of residual contamination and ensure the safety of bio-process, the product is sterilized by irradiation prior to delivery.
Types of sampling container: bags and bottles
Volume range: sampling bag 50 mL to 1 L, sampling bottle 20 mL to 250 mL
2 mm needle, covers a variety of liquid sampling needs in the entire bio-process
The material of the liquid contact layer of both the sampling bags (ULDPE) and sampling bottles (PC) complies with biopharmaceutical requirements
High transparency and excellent compatibility
Overmolded needles and tubings for assurance of airtightness and sterility
Adequate validation documents to ensure safety in use
Operating temperature range: sampling bag − 80 ° C to 60 ° C, sampling bottle − 80 ° C to 121 ° C
Maximum operating pressure: single-needle, single-bag products: 0.5 bar; single-needle, 5-bag products: 0.3 bar
Customization available
In the biopharmaceutical process, whether it is cell culture, separation and purification or final product filling, process sampling is a necessary and very critical important step. Samples collected through the BioHub® SP series are used to determine key purity attributes such as sterility, endotoxin levels, bioburden, and important parameters such as metabolites, nutrient levels, pH, and osmolarity during cultivation. The BioHub® S Sterile Sampling Bags is a pre-assembled single-use sampling solution.
|
Cat. No. |
Volume | Inlet tubing | Outlet tubing |
| BS-X050-S005 | 50 mL |
2 mm needle, silicone tubing, ID 3.2 mm*OD 6.4 mm, 25 cm in length, with a metal ring for sterile disconnection |
Silicone tubing, ID 3.2 mm*OD 6.4 mm, 25 cm in length, with needleless sampling |
| BS-X100-S005 | 100 mL | ||
| BS-X250-S005 | 250 mL | ||
| BS-X500-S005 | 500 mL | ||
| BS-0001-S005 | 1000 mL | ||
| BS-X050-S006 | 2 × 50 mL |
2 mm needle, silicone tubing, ID 3.2 mm*OD 6.4 mm, 25 cm in length, with a metal ring for sterile disconnection |
Silicone tubing, ID 3.2 mm*OD 6.4 mm, 25 cm in length, with needleless sampling |
| BS-X100-S006 | 2 × 100 mL | ||
| BS-X250-S006 | 2 × 250 mL | ||
| BS-X050-S007 | 3 × 50 mL |
2 mm needle, silicone tubing, ID 3.2 mm*OD 6.4 mm, 25 cm in length, with a metal ring for sterile disconnection 2 mm needle, silicone tubing, ID 3.2 mm*OD 6.4 mm, |
Silicone tubing, ID 3.2 mm*OD 6.4 mm, 25 cm in length, with needleless sampling Silicone tubing, ID 3.2 mm*OD 6.4 mm, |
| BS-X100-S007 | 3 × 100 mL | ||
| BS-X250-S007 | 3 × 250 mL | ||
| BS-X050-S008 | 5 × 50 mL | 25 cm in length, with a metal ring for sterile disconnection | 25 cm in length, with needleless sampling |
Sampling bag
| Cat. No. | Volume | Inlet tubing | Outlet tubing |
| BS-X050-S005 | 50 mL |
2 mm needle, silicone tubing, ID 3.2 mm*OD 6.4 mm, 25 cm in length, with a metal ring for sterile disconnection |
Silicone tubing, ID 3.2 mm*OD 6.4 mm, 25 cm in length, with needleless sam-pling |
| BS-X100-S005 | 100 mL | ||
| BS-X250-S005 | 250 mL | ||
| BS-X500-S005 | 500 mL | ||
| BS-0001-S005 | 1000 mL | ||
|
BS-X050-S006 |
2 × 50 mL |
2 mm needle, silicone tubing, ID 3.2 mm*OD 6.4 mm, 25 cm in length, with a metal ring for sterile disconnection |
Silicone tubing, ID 3.2 mm*OD 6.4 mm, 25 cm in length, with needleless sam- pling |
|
BS-X100-S006 |
2 × 100 mL |
||
|
BS-X250-S006 |
2 × 250 mL |
||
| BS-X050-S007 | 3 × 50 mL |
2 mm needle, silicone tubing, ID 3.2 mm*OD 6.4 mm, 25 cm in length, with a metal ring for sterile disconnection |
Silicone tubing, ID 3.2 mm*OD 6.4 mm, 25 cm in length, with needleless sam-pling |
| BS-X100-S007 | 3 × 100 mL | ||
| BS-X250-S007 | 3 × 250 mL | ||
| BS-X050-S008 | 5 × 50 mL |
2 mm needle, silicone tubing, ID 3.2 mm*OD 6.4 mm, 25 cm in length, with a metal ring for sterile disconnection |
Silicone tubing, ID 3.2 mm*OD 6.4 mm, 25 cm in length, with needleless sam-pling |
| BS-X100-S008 | 5 × 100 mL | ||
| BS-X250-S008 | 5 × 250 mL |
Sampling bottle
| Cat. No. | Volume | Inlet tubing | Outlet tubing |
| TSTG-ST037 | 20 mL |
2 mm needle, silicone tubing, ID 3.2 mm*OD 6.4 mm, 25 cm in length, with metal ring for ster-ile disconnection |
Silicone tubing, ID 3.2 mm*OD 6.4 mm, 25 cm in length, with vent filter |
| TSTG-ST038 | 50 mL | ||
| TSTG-ST039 | 125 mL | ||
| TSTG-ST040 | 250 mL | ||
|
TSTG-ST041 |
2 × 20 mL |
2 mm needle, silicone tubing, ID 3.2 mm*OD 6.4 mm, 25 cm in length, with metal ring for ster-ile disconnection |
Silicone tubing, ID 3.2 mm*OD 6.4 mm, 25 cm in length, with vent filter |
|
TSTG-ST042 |
2 × 50 mL |
||
|
TSTG-ST043 |
2 × 125 mL |
||
|
TSTG-ST044 |
2 × 250 mL |
||
| TSTG-ST045 | 3 × 20 mL |
2 mm needle, silicone tubing, ID 3.2 mm*OD 6.4 mm, 25 cm in length, with metal ring for ster-ile disconnection |
Silicone tubing, ID 3.2 mm*OD 6.4 mm, 25 cm in length, with vent filter |
| TSTG-ST046 | 3 × 50 mL | ||
| TSTG-ST047 | 3 × 125 mL | ||
| TSTG-ST048 | 3 × 250 mL | ||
| TSTG-ST049 | 5 × 20 mL |
2 mm needle, silicone tubing, ID 3.2 mm*OD 6.4 mm, 25 cm in length, with metal ring for ster-ile disconnection |
Silicone tubing, ID 3.2 mm*OD 6.4 mm, 25 cm in length, with vent filter |
| TSTG-ST050 | 5 × 50 mL | ||
| TSTG-ST051 | 5 × 125 mL | ||
| TSTG-ST052 | 5 × 250 mL |
Sampling unit
| Cat. No. | Volume |
Inlet tubing |
Outlet tubing |
| TSTG-ST053 | NA | 2 mm needle, silicone tubing, 3.2 mm (ID) × 6.4 mm (OD), 50 cm in length, with a metal ring for sterile disconnection and a male Luer and cap at the end | |
| TSTG-ST054 | NA | 2 mm needle, C-Flex tubing, 3.2 mm (ID) × 6.4 mm (OD), 50 cm in length, with a male Luer and cap at the end | |
| TSTG-ST055 | NA | 2 mm needle, PVC tubing, 3.2 mm (ID) × 6.4 mm (OD), 50 cm in length, with a male Luer and cap at the end | |
Sampling parts
| Cat. No. | Description |
Note |
|
| PLUG001GH | Silicone plug with handle | Non-sterile，needle-free | |
| PLUG001SH | Silicone plug with handle | Sterile，needle-free | |
| FPE7E00GH | Sampling needle component | Non-sterile，with needle | |
| FPE7E00SH | Sampling needle component | Sterile，with needle | |
100% integrity testing
USP <665>, Extractable testing
USP <88> , Class VI plastics
USP <87>, Cytotoxicity
USP <788>, Particulate Matter in Injections
USP <85>, Bacterial Endotoxins
ISO 11137, Sterility testing
ISO 10993-4, Hemolysis testing
