Home > Consumables > BioHub® Single-use Storage Bottles
BioHub® Single-use Storage Bottles
Brief description Brief description BioHub® Single-use Storage Bottle are suitable for sensitive liquids, buffers and media. The disposable sterile bottle is available in autoclave and gamma irradiated versions with different caps, eliminating the risk of batch-to-batch or product-to-product cross-contamination. In addition, a variety of different cap designs are available for customers to choose from to meet their specific needs for liquid delivery. BioHub® Single-use Storage Bottle are designed for the storage, transport, and cryopreservation of liquids used in biopharmaceutical processes. It can be used for sensitive liquids, buffers, culture media, etc. Autoclave and gamma irradiation versions with different caps are available. There is no risk of batch-to-batch or product-to-product cross-contamination. In addition, the bottle is equipped with multiple designs of caps and can be flexibly selected by customers according to their different requirements for liquid transfer. The caps of BioHub® Single-use Storage Bottle are available in 20 mm, 38 mm, 48 mm, and 80 mm, and are suitable for various steps of biotechnology and pharmaceutical liquid transport. The caps can be adapted to BioLink storage bottles as well as some foreign brand liquid storage bottles. Features of BioHub® Single-use Storage Bottle • The bottle is made of PC material for its durability and transparency • The cap is equipped with a silicone gasket to prevent leakage • Volume range: 5 mL–20 L • No additives, irradiated natural discoloration • Fully validated to ensure safety • Can be stored at − 80 ° C • Resistant to moist heat sterilization at 121 ° C for 30 min for 3 times • Customization available
Product Model：5 mL–20 L
Manufacturer nature：Manufacturer
Update time：2025-06-15
Visits：278
InquiryDownload
BACK

product catalog

Related articles

E-BLOT & FY BIO at ASCN 2026
✨ Happy 2026 from FY Bio! ✨
FY BIO – North America Weekly Update | Collaborations, Conferences & Industry Insights
Great day at CTAD 2025 in San Diego!
FY Bio Inc. is excited to participate in CTAD25 – San Diego, Dec 1–4, 2025!

Detailed Introduction

Specifications of BioHub® Single-use Storage Bottle

Ordering Information

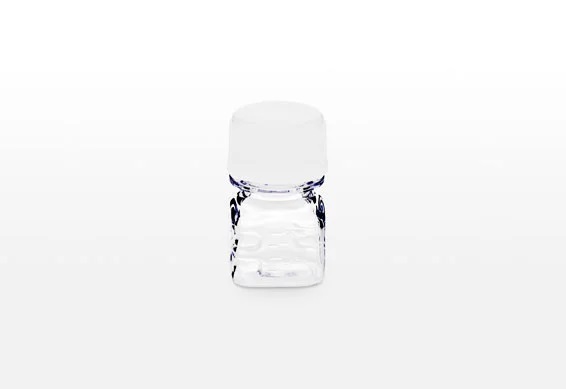

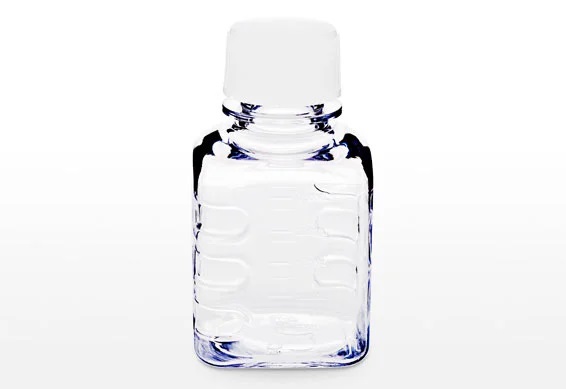

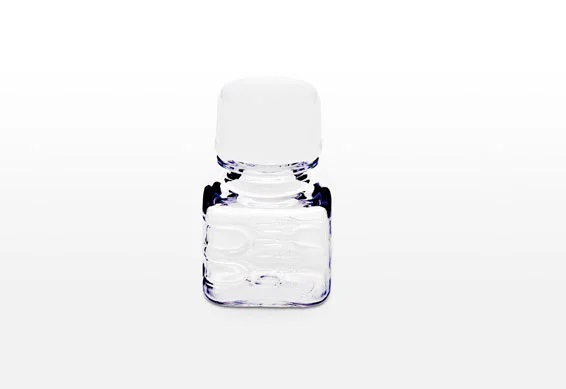

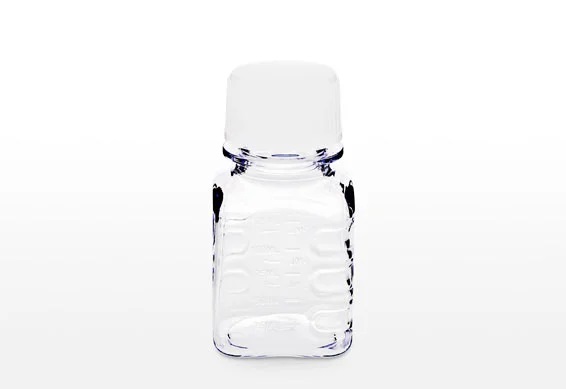

Bottle with regular cap

Cat. No.

- sterile

Cat. No.

- non-sterile

Volume

Dimension

L*W*H (mm)

Package Cap
BTA5ML001 BTB5ML001 5 mL 36*36*60 200 20 mm regular cap
BTA20ML001 BTB20ML001 20 mL 36*36*80 200
BTA50ML001 BTB50ML001 50 mL 45*45*85 120
BTA125ML001 BTB125ML001 125 mL 54*54*120 60 38 mm regular cap
BTA250ML001 BTB250ML001 250 mL 68*68*140 40
BTA500ML001 BTB500ML001 500 mL 74*74*190 20
BTA1L001 BTB1L001 1 L 98*98*220 25 48 mm regular cap
BTA2L001 BTB2L001 2 L 114*114*286 16
BTA5L001 BTB5L001 5 L 180*180*332 6 80 mm regular cap
BTA10L001 BTB10L001 10 L 225*225*337 4 48 mm regular cap
BTA20L001 BTB20L001 20 L 255*255*493 2

bottle with regular cap

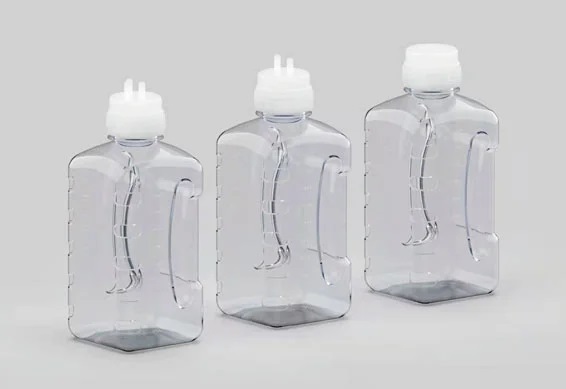

Storage Bottle with 2-port Cap (No Tubing)

Cat. No.

- sterile

Cat. No.

- non-sterile

Volume

Dimension

L*W*H (mm)

Package Cap
BTA5ML002 BTB5ML002 5 mL 36*36*60 200 20 mm 2-port cap, no tubing
BTA20ML002 BTB20ML002 20 mL 36*36*80 200
BTA50ML002 BTB50ML002 50 mL 45*45*85 120
BTA125ML002 BTB125ML002 125 mL 54*54*120 60 38 mm 2-port cap, no tubing
BTA250ML002 BTB250ML002 250 mL 68*68*140 40
BTA500ML002 BTB500ML002 500 mL 74*74*190 20
BTA1L002 BTB1L002 1 L 98*98*220 25 48 mm 2-port cap, no tubing
BTA2L002 BTB2L002 2 L 114*114*286 16
BTA5L002 BTB5L002 5 L 180*180*332 6 80 mm 2-port cap, no tubing
BTA10L002 BTB10L002 10 L 225*225*337 4 48 mm 2-port cap, no tubing
BTA20L002 BTB20L002 20 L 255*255*493 2

storage bottle with 2 port cap no tubing

Storage Bottle with 3-port Cap (No Tubing)

Cat. No.

- sterile

Cat. No.

- non-sterile

Volume

Dimension

L*W*H (mm)

Package Cap
BTA5ML003 BTB5ML003 5 mL 36*36*60 200 20 mm 3-port cap, no tubing
BTA20ML003 BTB20ML003 20 mL 36*36*80 200
BTA50ML003 BTB50ML003 50 mL 45*45*85 120
BTA125ML003 BTB125ML003 125 mL 54*54*120 60 38 mm 3-port cap, no tubing
BTA250ML003 BTB250ML003 250 mL 68*68*140 40
BTA500ML003 BTB500ML003 500 mL 74*74*190 20
BTA1L003 BTB1L003 1 L 98*98*220 25 48 mm 3-port cap, no tubing
BTA2L003 BTB2L003 2 L 114*114*286 16
BTA5L003 BTB5L003 5 L 180*180*332 6 80 mm 3-port cap, no tubing
BTA10L003 BTB10L003 10 L 225*225*337 4 48 mm 3-port cap, no tubing
BTA20L003 BTB20L003 20 L 255*255*493 2

storage bottle with 3 port cap no tubing

Storage Bottle with 2-port Cap (With Welded Tubing)

Cat. No.

-  sterile

Cat. No.

- non-sterile

Volume

Dimension

L*W*H (mm)

Cap Line
BTA5ML008 BTB5ML008 5 mL 36*36*60

20 mm

2-port cap

Outer tubing 1: thermoplastic tubing, 1/8"*1/4", 30 cm, plug

Outer tubing 2: silicone tubing, 1/8"*1/4", 10 cm, hydropho-bic filter

Inner tubing: silicone tubing, 1/8"*1/4", bottoming

BTA20ML008 BTB20ML008 20 mL 36*36*80
BTA50ML008 BTB50ML008 50 mL 45*45*85
BTA125ML008 BTB125ML008 125 mL 54*54*120

38 mm

2-port cap

Outer tubing 1: thermoplastic tubing, 1/4"*7/16", 30 cm, plug

Outer tubing 2: silicone tubing, 1/4"*7/16", 10 cm, hydropho-bic filter

Inner tubing: silicone tubing, 1/8"*1/4", bottoming

BTA250ML008 BTB250ML008 250 mL 68*68*140
BTA500ML008 BTB500ML008 500 mL 74*74*190
BTA1L008 BTB1L008 1 L 98*98*220

48 mm

2-port cap

Outer tubing 1: thermoplastic tubing, 1/4"*7/16", 30 cm, plug

Outer tubing 2: silicone tubing, 1/4"*7/16", 10 cm, hydropho-bic filter

Inner tubing: silicone tubing, 1/4"*7/16", bottoming

BTA2L008 BTB2L008 2 L 114*114*286
BTA5L008 BTB5L008 5 L 180*180*332

80 mm

2-port cap

Outer tubing 1: thermoplastic tubing, 3/8*5/8", 30 cm, plug

Outer tubing 2: silicone tubing, 3/8*5/8", 15 cm, hydropho-bic filter

Inner tubing: silicone tubing, 1/4"*7/16", bottoming

BTA10L008 BTB10L008 10 L 225*225*337

48 mm

2-port cap

Outer tubing 1: thermoplastic tubing, 1/4" *7/16", 30cm, plug

Outer tubing 2: silicone tubing, 1/4" * 7/16",10cm, hydropho-bic filter

Inner tubing: silicone tubing, 1/4" * 7/16", bottoming

BTA20L008 BTB20L008 20 L 255*255*493

storage bottle with 2 port cap with welded tubing

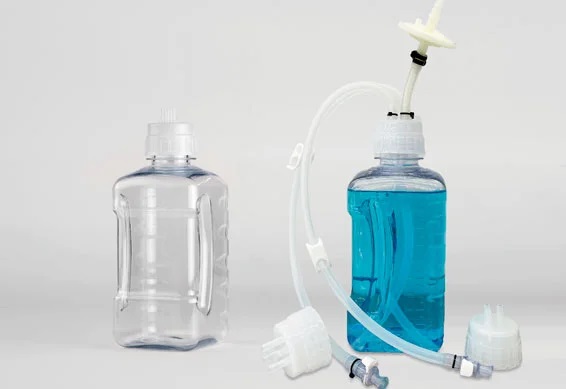

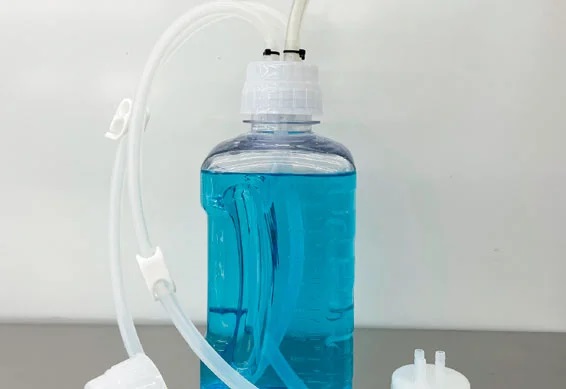

Storage Bottle with 2-port Cap (With Silicone Tubing)

Cat. No.

-  sterile

Cat. No.

- non-sterile

Volume

Dimension

L*W*H (mm)

Cap Line
BTA5ML009 BTB5ML009 5 mL 36*36*60

20 mm

2-port cap

Outer tubing 1: silicone tubing with metal ring, 1/8"*1/4", 30 cm, MPC-Female

Outer tubing 2: silicone tubing, 1/8"*1/4", 10 cm, hydropho bic filter

Inner tubing: silicone tubing, 1/8"*1/4", bottoming

BTA20ML009 BTB20ML009 20 mL 36*36*80
BTA50ML009 BTB50ML009 50 mL 45*45*85
BTA125ML009 BTB125ML009 125 mL 54*54*120

38 mm

2-port cap

Outer tubing 1: silicone tubing with metal ring, 1/4"*7/16", 30 cm, MPC-Female

Outer tubing 2: silicone tubing, 1/4"*7/16", 10 cm, hydropho bic filter

Inner tubing: silicone tubing, 1/8"*1/4", bottoming

BTA250ML009 BTB250ML009 250 mL 68*68*140
BTA500ML009 BTB500ML009 500 mL 74*74*190
BTA1L009 BTB1L009 1 L 98*98*220

48 mm

2-port cap

Outer tubing 1: silicone tubing with metal ring, 1/4"*7/16", 30 cm, MPC-Female

Outer tubing 2: silicone tubing, 1/4"*7/16", 10 cm, hydropho bic filter

Inner tubing: silicone tubing, 1/4"*7/16", bottoming

BTA2L009 BTB2L009 2 L 114*114*286
BTA5L009 BTB5L009 5 L 180*180*332

80 mm

2-port cap

Outer tubing 1: silicone tubing with metal ring, 3/8*5/8", 30 cm, MPC-Female

Outer tubing 2: silicone tubing, 3/8*5/8", 15 cm, hydrophobic filter

Inner tubing: silicone tubing, 1/4"*7/16", bottoming

BTA10L009 BTB10L009 10 L 225*225*337

48 mm

2-port cap

Outer tubing 1: silicone tubing with metal ring, 1/4" *7/16", 30cm, MPC-Female

Outer tubing 2: silicone tubing, 1/4" * 7/16",10cm, hydro phobic filter

Inner tubing: silicone tubing, 1/4" * 7/16", bottoming

BTA20L009 BTB20L009 20 L 255*255*493

storage bottle with 2 port cap with silicone tubing
