Innovative design of Nuclease-free Single-use Consumables with 100% RNase/DNase inspection and release of products and customer verification.
NovaLinX® Nuclease-free Single-use Consumables mainly include storage bottles, satellite bags, and manifold bags. RNase/DNase testing is optional to prevent the potential introduction of RNase/DNase during drug production.
Deoxyribonuclease (DNase) and ribonuclease (RNase) are a class of hydrolase that can degrade DNA and RNA molecules by severing the phosphodiester bonds of polynucleotide chains. Nucleases are widely found in the environment, on the surface of materials and consumables. In the production process of biologics, there is also a large potential for residues and contamination of nucleases, including endogenous RNase contamination of bi-ological samples, exogenous contamination of water, buffers, surface of consumables, as well as environmental microorganisms and human beings. Nucleases are often extremely reactive, and small amounts of DNase/RNase contamination can lead to significant DNA/RNA degradation, which can have a significant impact on experimen-tal and manufacturing processes.
With the boom of the biopharmaceutical industry in recent years, more and more bioproducts are being used in disease prevention and treatment. Technologies such as mRNA, cellular and gene therapies, and vaccines based on viral vector modification are gradually gaining widespread use. While anticipating the remarkable effects of these new technologies, the market has also put forward higher requirements for the quality and safety of bioproducts. In order to ensure the safety of bioproducts and the control of impurity residues, numerous relevant regulations and policies have been launched. The “2020 edition of the Pharmacopoeia of the People's Republic of China” specifically mentions the need to control process-related impurities, including nuclease, in the R&D and production of these biologics in sections “General Instructions on Vaccine for Human Use”, “General Instructions on Recombinant Monoclonal Antibody Products for Human Use”, “General Instructions on Gene Therapy Products for Human Use”, and “Technical Guidelines for the Research and Evaluation of Cellular Thera-peutic Products”.
NovaLinX® single-use consumables mainly include storage bottles, satellite bags, and manifold bags. RNase/DNase testing is optional to prevent the potential introduction of RNase/DNase during drug production.

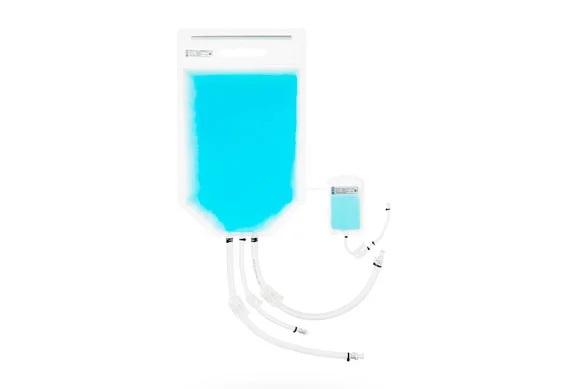

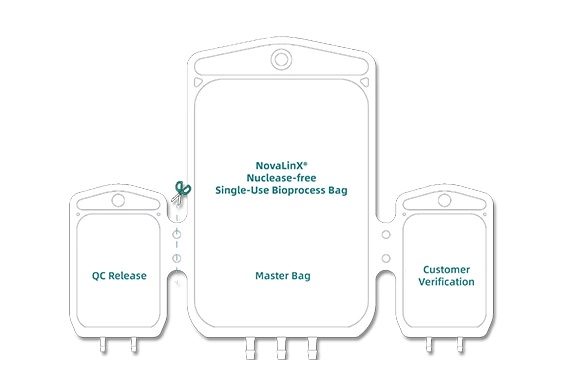

Master bag + innovative design of double satellite bags (enabling 100% individual inspection of RNase/DNase-free bags)
Identical material/production environment of the master bag and satellite bags, consistent gamma irradiation after packaging
Irradiated satellite bag-1 (QC release): for Nuclease inspection prior to product release
Irradiated satellite bag-2 (customer verification): for customer verification and review
The extraction ratio of the satellite bag is at the worst case, which represents the Nuclease level of the master bag.
Imported 9101 film.
The production environment is usually an ISO Class 7 clean workshop for single-use bioprocessing consumables.
Environmental monitoring bag (monthly monitoring of production environment Nuclease level.) - produced on the last day of the month on the production line (Worse Case)
Master bag + innovative design of double satellite bags (enabling 100% individual inspection of RNase/DNase-free bags)
Identical material/production environment of the master bag and satellite bags, consistent gamma irradiation after packaging
Irradiated satellite bag-1 (QC release): for Nuclease inspection prior to product release
Irradiated satellite bag-2 (customer verification): for customer verification and review
The extraction ratio of the satellite bag is at the worst case, which represents the Nuclease level of the master bag.
Imported 9101 film.
The production environment is usually an ISO Class 7 clean workshop for single-use bioprocessing consumables.
Environmental monitoring bag (monthly monitoring of production environment Nuclease level.) - produced on the last day of the month on the production line (Worse Case)
Features of NovaLinX® Nuclease-free Single-use Consumables
Features of Satellite Bag
Features of Satellite Bag
Product Model： 1–50 L Manufacturer nature：Manufacturer Update time：2025-06-15 Visits：158 product catalog
Related articles
Detailed Introduction
Specifications of NovaLinX® Nuclease-free Single-use Consumables
|
Final A Film Product No. |
Volume |
Bag Design |
Line 1 |
Line 2 |
Line 3 |
||||
|
ARF01LCPPL00 |
1 L |
Hanging hole |
50 cm ID1/4"*0D7/16" |
50 cm ID1/4"*OD7/16" |
30 cm ID1/4"*OD7/16"
C-Flex TPE tube + |
||||
|
ARF02LCPPL00 |
2 L |
Hanging hole |
|||||||
|
ARF05LCPPL00 |
5 L |
Hanging rod + |
50 cm ID3/8"*OD5/8" |
50 cm ID3/8" * OD5/8" |
|||||
|
ARF10LCPPL00 |
10L |
Hanging rod + |
|||||||
|
ARF20LCPPL00 |
20 L |
Hanging rod + |
|||||||
|
ARF50LCPPL00 |
50 L |
Hanging rod + |
|||||||
|
ARF01LHAAL00 |
1 L |
Hanging hole |
50 cm IDl/4"*OD7/16" Platinum 50 Platinum cured silicone tube + AseptiQuik® G Sterile Connector |
50 cm ID1/4"*OD7/16"
Platinum 50 Platinum cured |
30 cm lD1/4"*OD7/16" |
||||
|
ARF02LHAAL00 |
2 L |
Hanging hole |
|||||||
|
ARF05LHAAL00 |
5 L |
Hanging rod + |
50 cm ID3/8"* OD5/8" |
50 cm lD3/8"*OD5/8" Platinum 50 Platinum cured silicone tube + AseptiQuik® G Sterile Connector |
|||||
|
ARF10LHAAL00 |
10L |
Hanging rod + |
|||||||
|
ARF20LHAAL00 |
20 L |
Hanging rod + |
|||||||
|
ARF50LHAAL00 |
50 L |
Hanging rod + |
|||||||
|
ARF01LX11L00 |
1 L |
Hanging hole |
50 cm ID1/4"*OD7/16" Platinum 50 Platinum cured silicone tube + MPC female connector |
50 cm ID1/4"*OD7/16" C-Flex TPE tube + MPC male connector |
30 cm ID1/4"*OD7/16" C-Flex TPE tube + Needleless sampling valve |
||||
|
ARF02LX11 L00 |
2 L |
Hanging hole |
|||||||
|
ARF05LX11L00 |
5 L |
Hanging rod + |
50 cm ID3/8"*OD5/8" Platinum 50 Platinum cured silicone tube + MPC female connector |
50 cm ID3/8"*OD5/8" C-Flex TPE tube+ MPC male connector |
|||||
|
ARF10LX11L00 |
10 L |
Hanging rod + |
|||||||
|
ARF20LX11L00 |
20 L |
Hanging rod + |
|||||||
|
ARF50LX11 L00 |
50 L |
Hanging rod + |
|||||||
|
ARF01LXCCL00 |
1 L |
Hanging hole |
50 cm ID1/4"*OD7/16" Platinum 50 Platinum cured silicone tube + TC25 connector |
50 cm ID1/4"*0D7/16" C-Flex TPE tube + TC25 connector |
30 cmlD1/4"*OD7/16" |
||||
|
ARF02LXCCL00 |
2 L |
Hanging hole |
|||||||
|
ARF05LXCCL00 |
5 L |
Hanging rod + |
50 cm ID3/8"* OD5/8" Platinum 50 Platinum cured silicone tube + TC25 connector |
50 cm ID3/8"* OD5/8" C-Flex TPE tube + TC25 connector |
|||||
|
ARFWLXCCL00 |
10L |
Hanging rod + |
|||||||
|
ARF20LXCCL00 |
20 L |
Hanging rod + |
|||||||
|
ARF50LXCCL00 |
50 L |
Hanging rod + |
|||||||
|
Nuclease-free Single-Use Consumables |
|
||||||||
|
Single-use storage bottle |
Batch inspection |
DNase-free/ RNase-free/ Nuclease-free (DNase-free & RNase-free) |
|
||||||
|
Single-use 2D satellite bag/ manifold bag |
Individual/hybrid/batch inspection |
|
|||||||
|
Single-use 3D storage bag |
Individual/hybrid/batch inspection |
|
|||||||
|
Single-use mixing bag |
Individual/hybrid/batch inspection |
|
|||||||
|
Single-use cell bag/mixing bag |
Individual/hybrid/batch inspection |
|
|||||||
|
Single-use bioreactor bag |
Individual/hybrid/batch inspection |
|
|||||||
|
|
|||||||||
Ordering Information
|
DNase-free Cat. No. |
RNase-free Cat. No. |
Nuclease-free Cat. No. |
Volume |
Product name |
Matching type |
Package |
||
|
BTA5ML001D |
BTA5ML001R |
BTA5ML001N |
5 mL |
NovaLinX® 5 mL single-use storage bottle |
Regular cap |
200 |
||
|
BTA20ML001D |
BTA20ML001R |
BTA20ML001N |
20 mL |
NovaLinX® 20 mL single-use storage bottle |
200 |
|||
|
BTA50ML001D |
BTA50ML001R |
BTA50ML001N |
50 mL |
NovaLinX® 50 mL single-use storage bottle |
120 |
|||
|
BTA125ML001D |
BTA125ML001R |
BTA125ML001N |
125 mL |
NovaLinX® 125 mL single-use storage bottle |
60 |
|||
|
BTA250ML001D |
BTA250ML001R |
BTA250ML001N |
250 mL |
NovaLinX® 250 mL single-use storage bottle |
40 |
|||
|
BTA500ML001D |
BTA500ML001R |
BTA500ML001N |
500 mL |
NovaLinX® 500 mL single-use storage bottle |
20 |
|||
|
BTA1L001D |
BTA1L001R |
BTA1L001N |
1 L |
NovaLinX® 1 L single-use storage bottle |
25 |
|||
|
BTA2L001D |
BTA2L001R |
BTA2L001N |
2 L |
NovaLinX® 2 L single-use storage bottle |
16 |
|||
|
BTA5ML002D |
BTA5ML002R |
BTA5ML002N |
5 mL |
NovaLinX® 5 mL single-use storage bottle |
2-port cap |
200 |
||
|
BTA20ML002D |
BTA20ML002R |
BTA20ML002N |
20 mL |
NovaLinX® 20 mL single-use storage bottle |
200 |
|||
|
BTA50ML002D |
BTA50ML002R |
BTA50ML002N |
50 mL |
NovaLinX® 50 mL single-use storage bottle |
120 |
|||
|
BTA125ML002D |
BTA125ML002R |
BTA125ML002N |
125 mL |
NovaLinX® 125 mL single-use storage bottle |
60 |
|||
|
BTA250ML002D |
BTA250ML002R |
BTA250ML002N |
250 mL |
NovaLinX® 250 mL single-use storage bottle |
40 |
|||
|
BTA500ML002D |
BTA500ML002R |
BTA500ML002N |
500 mL |
NovaLinX® 500 mL single-use storage bottle |
20 |
|||
|
BTA1L002D |
BTA1L002R |
BTA1L002N |
1 L |
NovaLinX® 1 L single-use storage bottle |
25 |
|||
|
BTA2L002D |
BTA2L002R |
BTA2L002N |
2 L |
NovaLinX® 2 L single-use storage bottle |
16 |
|||
|
BTA5ML003D |
BTA5ML003R |
BTA5ML003N |
5 mL |
NovaLinX® 5 mL single-use storage bottle |
3-port cap |
200 |
||
|
BTA20ML003D |
BTA20ML003R |
BTA20ML003N |
20 mL |
NovaLinX® 20 mL single-use storage bottle |
200 |
|||
|
BTA50ML003D |
BTA50ML003R |
BTA50ML003N |
50 mL |
NovaLinX® 50 mL single-use storage bottle |
120 |
|||
|
BTA125ML003D |
BTA125ML003R |
BTA125ML003N |
125 mL |
NovaLinX® 125 mL single-use storage bottle |
60 |
|||
|
BTA250ML003D |
BTA250ML003R |
BTA250ML003N |
250 mL |
NovaLinX® 250 mL single-use storage bottle |
40 |
|||
|
BTA500ML003D |
BTA500ML003R |
BTA500ML003N |
500 mL |
NovaLinX® 500 mL single-use storage bottle |
20 |
|||
|
BTA1L003D |
BTA1L003R |
BTA1L003N |
1 L |
NovaLinX® 1 L single-use storage bottle |
25 |
|||
|
BTA2L003D |
BTA2L003R |
BTA2L003N |
2 L |
NovaLinX® 2 L single-use storage bottle |
16 |
|||
|
DNase-free Cat. No. |
RNase-free Cat. No. |
Nuclease-free Cat. No. |
Volume |
Line |
||||
|
BD-X005-S001 |
BR-X005-S001 |
BN-X005-S001 |
5 mL |
batch inspection, 5 mL satellite bag 20 cm ID1/8"*OD1/4" platinum cured silicone tubing + female Luer 10 cm ID1/8"*OD1/4" platinum cured silicone tubing + female Luer |
||||
|
BD-X010-S001 |
BR-X010-S001 |
BN-X010-S001 |
10 mL |
10 mL satellite bag（only for 10mL storage bag） 50 mL satellite bag（only for 20mL storage bag） 20 cm ID1/8"*OD1/4" platinum cured silicone tubing + female Luer 10 cm ID1/8"*OD1/4" platinum cured silicone tubing + female Luer 10 cm ID1/8"*OD1/4" platinum cured silicone tubing + female Luer 10 cm ID1/8"*OD1/4" platinum cured silicone tubing + needleless sampling |
||||
|
BD-X020-S001 |
BR-X020-S001 |
BN-X020-S001 |
20 mL |
|||||
|
BD-X050-S001 |
BR-X050-S001 |
BN-X050-S001 |
50 mL |
50mL satellite bag 20 cm ID1/8"*OD1/4" platinum cured silicone tubing + female Luer 30 cm ID1/8"*OD1/4" platinum cured silicone tubing + female Luer 30 cm ID1/8"*OD1/4" platinum cured silicone tubing + female Luer 30 cm ID1/8"*OD1/4" platinum cured silicone tubing + needleless sampling |
||||
|
BD-X100-S001 |
BR-X100-S001 |
BN-X100-S001 |
100 mL |
|||||
|
BD-X250-S001 |
BR-X250-S001 |
BN-X250-S001 |
250 mL |
|||||
|
BD-X500-S001 |
BR-X500-S001 |
BN-X500-S001 |
500 mL |
|||||
|
BD-0001-S002 |
BR-0001-S002 |
BN-0001-S002 |
1 L |
50mL satellite bag 20 cm ID1/8"*OD1/4" C-Flex thermoplastic tubing + female Luer 30 cm ID1/4" * OD7/16" C-Flex thermoplastic tubing + plug 30 cm ID1/4" * OD7/16" C-Flex thermoplastic tubing + plug 20 cm ID1/4"*OD7/16" C-Flex thermoplastic tubing + needleless sampling |
||||
|
BD-0002-S002 |
BR-0002-S002 |
BN-0002-S002 |
2 L |
|||||
|
BD-0005-S002 |
BR-0005-S002 |
BN-0005-S002 |
5 L |
50mL satellite bag 20 cm ID1/8"*OD1/4" C-Flex thermoplastic tubing + female Luer 30 cm ID3/8" * OD5/8" C-Flex thermoplastic tubing + plug 30 cm ID3/8" * OD5/8" C-Flex thermoplastic tubing + plug 20 cm ID1/4"*OD7/16" C-Flex thermoplastic tubing + needleless sampling |
||||
|
BD-0010-S002 |
BR-0010-S002 |
BN-0010-S002 |
10 L |
|||||
|
BD-0020-S002 |
BR-0020-S002 |
BN-0020-S002 |
20 L |
|||||
|
BD-0050-S002 |
BR-0050-S002 |
BN-0050-S002 |
50 L |
|||||
